MEET THE ALL NEW

EP25K-Li

LITHIUM FORKLIFT

CONTACT US for information

OVERVIEW

5,000 lbs

Lift Capacity

80V

LiFePO4 Battery

10 yr

Battery Warranty

4 Wheel

Pnematic Forklift

Introducing the EP25K-Li, our new 5,000 lb lift capacity lithium-powered forklift, a game-changer for warehouse operations. This cutting-edge forklift is equipped with state-of-the-art features that deliver exceptional performance, safety, and comfort to operators.

Built with a 4-wheel pneumatic design, this forklift is highly maneuverable, allowing it to easily navigate tight corners and narrow aisles. The ergonomic layout is centered around operator safety and comfort. Its 3-point entry access and spacious operator’s compartment provide ample room to work in comfort. The forklift’s mast visibility is industry-leading, allowing you to work with precision and accuracy.

The EP25K-Li’s safety features are top-notch, with a reinforced steel overhead guard, safety strobe lights, operator’s present seat switch, backup alarm, OHG light kit, and automatic brake hold. The triple-stage mast and cascade side shifter make handling heavy loads easy, while the 4-way hydraulic valve levers provide smooth and precise control.

Backed by a 12-month bumper-to-bumper warranty, a 3-year powertrain warranty, and a 10-year battery warranty, the forklift’s reliability is unmatched. Its 350 Ah battery uses reliable LiFePO4 chemistry, ensuring long-lasting performance. The forklift also comes with an electric charging port and opportunity charger 480/3-phase, making it easy to charge in under 2 hours.

Submit an RFQ above and secure a TitanGreen EP25k-Li today!

EP25K-Li Warranty Download

MORE FEATURES

Design

Technology

Battery

Lithium LiPO4 Battery Charging System

480/3-phase Advanced Charger

With its powerful three-phase power supply, this charger delivers a high amount of energy to quickly charge forklift batteries. The charger features a power module that converts AC power to DC power, and a control module that manages the charging process to ensure safe and efficient charging.
Our forklift charger comes with a charging cable that connects the charger to the battery, making it easy to charge your forklift quickly and efficiently. The charger is also designed with safety features such as overcharge protection and short circuit protection, providing peace of mind and ensuring the longevity of your battery.

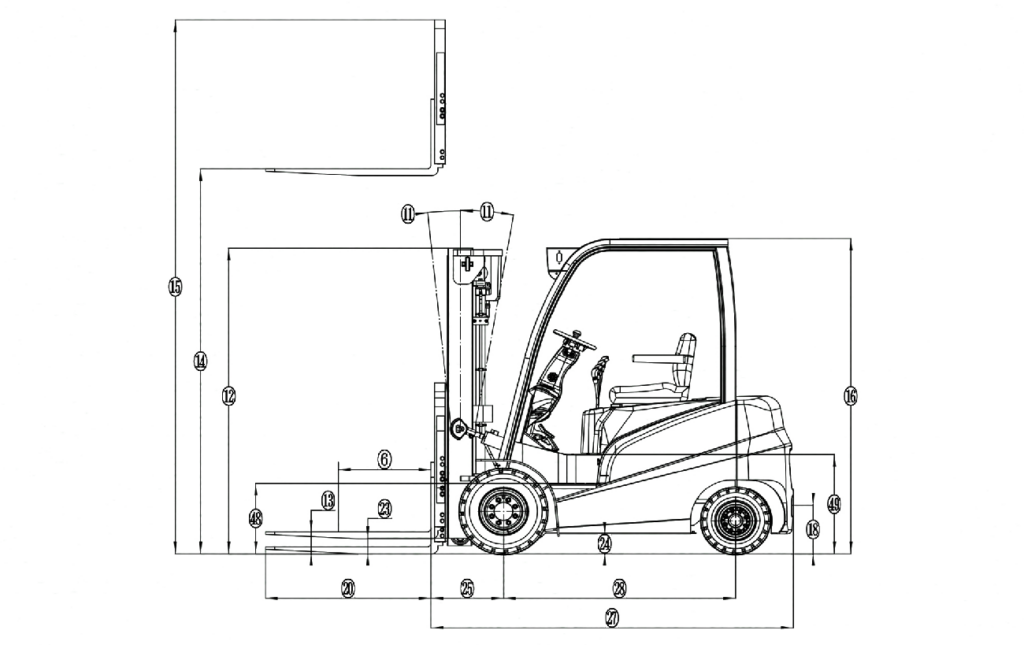

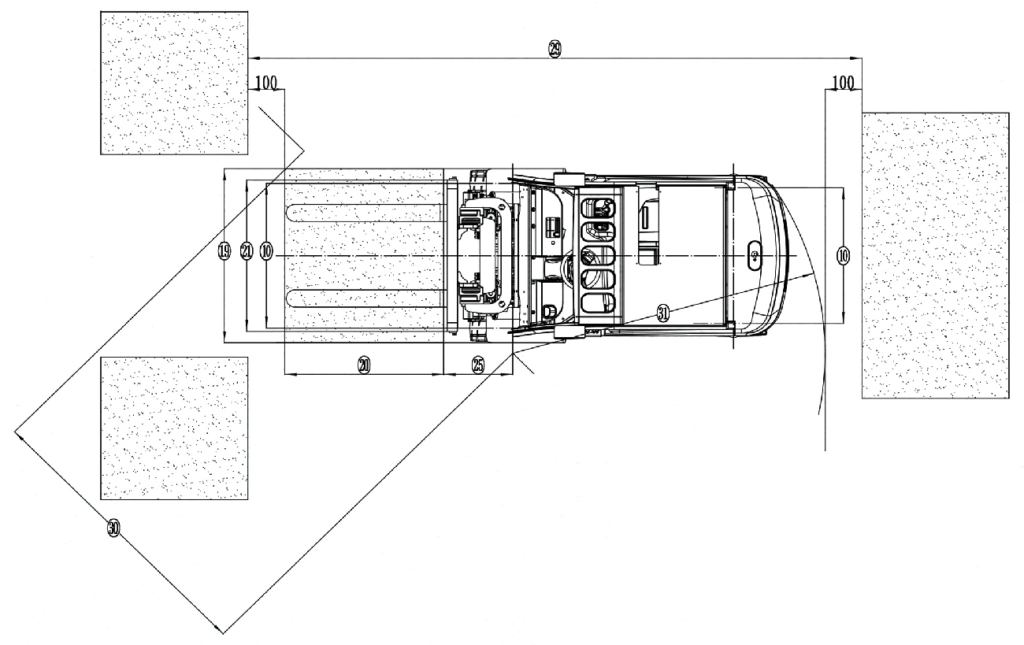

SPECIFICATIONS

1
Manufacturer
TitanGreen
2
Model Designation
EP25K-Li
3
Power
Electric
4
Operation
Sit
5
Rated Capacity
5512 lb (2500 kg)
6
Load Center
24 in (610 mm)
7
Tire Type (Cushion, Solid, Pneumatic, etc.)
Drive/Steer
Solid/Pneumatic
8
Tire Size
Drive/Steer
23x9-10 in/18x7-8 in
9
Wheels (Number)
X=Driven
Drive/Steer
2X/2
10
Tread
Tires Std Drive/Steer
40.9 in/37.4 in (1040 mm/950 mm)
11
Mast Tilt
Std
6Fº/6Bº
12
Mast (Lowered Height)
Std Mast
80.31 in (2040 mm)
13
Free Lift (Top of Fork)
Std 3 Stg Limited Free Lift Mast
64 in (1626 mm)
14
Overall Lift Height (Top of Fork)
Std 3 Stg Limited Free Lift Mast
189 in (4801 mm)
15
Mast (Extended Height)
Std 3 Stg Mast with LBR
228 in (5791 mm)
16
Overhead Guard Height
Std/Drive In Rack/Opt/Opt Flat Plate
83.6 in (2125 mm)
17
Sip to Bottom Std Ohg
Susp at Mid-Point
Std/Susp/Swivel
38.5 in (980 mm)
18
Tow Pin Height
Vertical Center of Pin
12.8 in (325 mm)
19
Overall Width
Standard Tread
49.8 in (1265 mm)
20
Forks
Class II
HxWxD
1.8x4.7x42.1 in (45x120x1070 mm)
21
Standard Carriage Width
Class II
41.7 in (1060 mm)
22
Ground Clearance
Lowest Point
NL/RL
4.13 in/3.35 in (105 mm/85 mm)
23
Ground Clearance
Center of Truck
NL/RL
5.51 in/4.72 in (140 mm/120 mm)
24
Load Distance
Center of Wheel to Face of Forks
18.3 in (464 mm)
25
Battery Compartment
HxWxD
Std/Battery Rollers/Tall
27.5x31.8x20.4 in (700x810x520 mm)
26
Length to Face of Forks
Chassis Length
90.8 in (2306 mm)
27
Wheelbase
59 in (1500 mm)
28
Right Angle Stack
154 in (3914 mm)
29
Equal Aisle
90º Intersecting Aisle
78 in (1983 mm)
30
Outside Turning Radius
80.7 in (2050 mm)
31
Truck Weight
Without Battery (NL)
NL
8885 lb (4030 kg)
32
Axle Loading (Drive)
Static with Max Weight Battery
NL/RL
4387 lb/13800 lb (1990 kg/6260 kg)
33
Axle Loading (Steer)
Static with Max Weight Battery
NL/RL
5379 lb/1477 lb (2440 kg/670 kg)
34
Voltage
80V
35
Travel Speed
Extended Shift Off
NL/RL
9.32 mph/8.39 mph (15 km/h/13.5 km/h)
36
Lift Speed
Std 3 Stg FFL Mast
NL/RL
84.6 ft/min/76.7 ft/min (0.43 m/sec/0.39 m/sec)
37
Lower Speed
Std 3 Stg FFL Mast
NL/RL
64.9 ft/min/74.7 ft/min (0.33 m/sec/0.38 m/sec)
38
Gradeability
5 Minute Rating
NL/RL
22%/16%
39
Brake
Method of Control
Service/Parking
Hydraulic/Mechanical
40
Brake
Method of Operation
Service/Parking
Foot/Foot
41
Battery
Type
Lithium LiPO4
42
Traction Motor
60 Minute Rating
10 hp (7.5 kW)
43
Pump Motor
15% Rating
13.4 hp (10 kW)
44
Traction Motor
Type/Control Method
SRM/Transistor
45
Pump Motor
Type/Control Method
SRM/Transistor
46
Number of Speeds
Traction/Pump
Infinitely Variable/Infinitely Variable
47
Step Height
18.5 in (470 mm)
48
Floor Height
Lowest Point
26 in (660 mm)
49
Attachment Relief Pressure
2320 psi (160 bar)
50
Sound Level
Measured per ANSI B56.11.5
65 db (A)

CHARGER SPECIFICATIONS

51
Model
80V 200A
Power Rating
16KW
52
Input Voltage
380 - 480V AC
Dimensions (HxWxD)
25.6x21x11.9 in (650x532x301 mm)
53
Frequency
50 - 60Hz
Wiring Method
480/3-Phase
54
Output Current (Peak)
200A
Connector Type
Euro 320A
